Contactless IC Reader-Writer
Contactless IC Card Reader-Writer
Ptlogo:YD180B1

YD-180 combines contactless type and contact type reader-writer, it can read and write type A RF card, M1 card, and cards in type B protocol. USB-HID interface connect with PC or other relative device. It provides the Drive development kits on Windows and Linux operation systems, and attaches demo program make the total functions for visiting the RF card.



YD-180 IC card reader-writer is the necessary front-end processing device which develops the non-contact IC card relative products and systems integration. The variety and completive interface functions, can be used for bank, industrial and Commercial systems, telecommunications, postal service, tax administration, insurance, medical treatment, conference register, internet-bar management, petrol station, parking yard, etc. for tolls, deposit, inquiry smart card management applications.

  • Content
  • Param
  • Download
  • Orderinfo
  • Rangeb



Specs:



Product Name

YD180B1 reader-writer

Weight

300g

Temperature limitation

-20 ºC~ 60ºC

Relative Humidity

(95±2)%

Working voltage

5V USB power-up

Max current

 <150mA

Communication type with PC

USB  HID communication

Standards compliant

    ISO14443 A/B

Limitation of Non-contact card

Support CPU card meet ISO14443 Type A & Type B protocols



Support Type: Mifare S50, Mifare S70, CPU card, etc.

Appearance

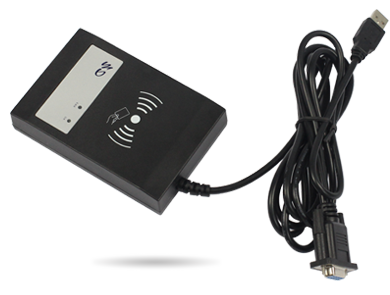

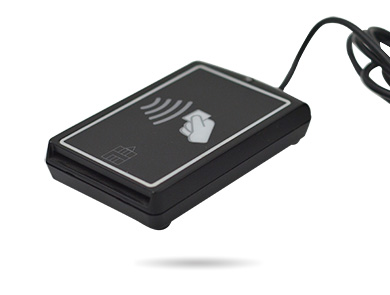

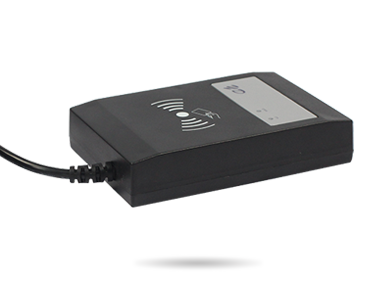

As the picture:韻達通IC卡讀卡器5

Status indication

Double LED indicators to show the power and communication status.

Outline sizes

120mm*80mm*25mm

Operation systems

Windows 98/Me/2000/XP/2003 ,win7,Linux , etc.

Other features

Provide the universal interface function library and developing language program.
