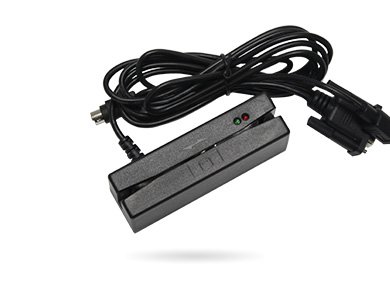

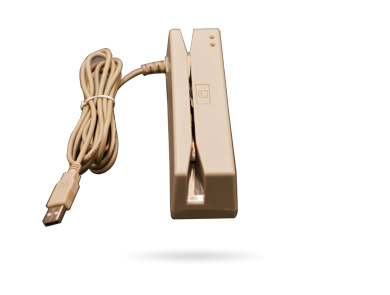

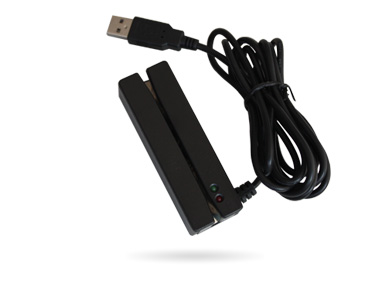

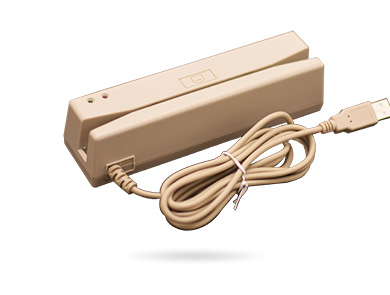

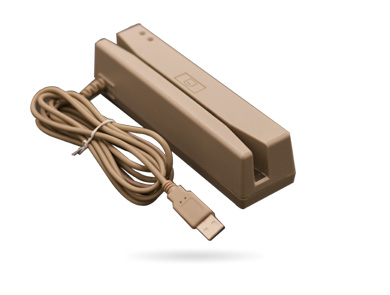

The YD-400 series magnetic card reader is used to read the magnetic card information and transmit it to the computer or terminal equipment. It supports two-way card operation, and can read magnetic card first, 2 and 3 track information according to different user requirements. It is fully in conformity with the ANSI/ISO technical standard.
參數說明
Readable track: TK1/TK2/TK3, supporting bi-directional card
Magnetic card standard: magnetic stripe specification compatible with ISO, IBM, DIN and ANSI standards
Card speed: 10 ~ 120cm/s
Card reading ability: 300 OE - 4000 OE
Interface Description: optional PS2 keyboard port, USB2.0 or RS232 serial port.
Technical indicators
Working voltage: +5V
Current consumption: single track 3.5mA dual track 5.2mA three track 7.3mA
Working temperature and humidity: -20 ~ +55 C 30% ~ 90%RH
Storage temperature and humidity: -40 ~ +60 C 20% ~ 95%RH (no condensation).
Magnetic card head life: >50 million times
Antistatic: 15000V
Standard size L170 * W44 * H42mm small size: L90*W30*H26
Magnetic card data format
STX SS card data ES CR ETX
0x02 % DATA ? 0x0d 0x03 first track
0x02 : DATA ? 0x0d 0x03 second track
0x02 + DATA ? 0x0d 0x03 third track
application area
Major commercial POS systems, smart card companies, membership systems, etc.
