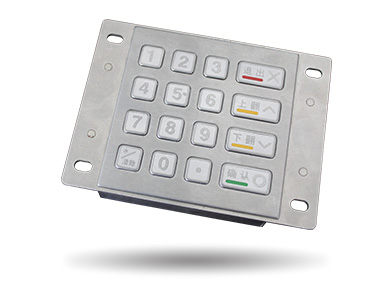

Financial Encryption Keypad
E-POS Payment Terminal Model D
Ptlogo：Model D

Technical features:

Power voltage:DC5V/±10%

Power supply: USB power share

Electricity Current: standby ≤100mA,working status peak: ≤200mA

Communication mode: RS232 interface/USB-HID compatible

  • Content
  • Param
  • Download
  • Orderinfo
  • Rangeb

Technical features:

Power voltage:DC5V/±10%

Power supply: USB power share

Electricity Current: standby ≤100mA,working status peak: ≤200mA

Communication mode: RS232 interface/USB-HID compatible



Keycaps: 0~9 numeric keys ;Function keys as “Cancel”, “Enter”,” F1”,”F2”,”F3”

Working lifetime: no less than 5,000,000 times

Contact-type IC card interface: ISO7816 Standards compliant and Chinese financial IC card PBOC 2.0 rules compliant.

IC card service voltages: 5V, and the electricity current is less than 50mA

Lifetime of the card holder: no less than 200,000 times

Support non-contact IC card interface

Support IC card and CPU card which are ISO14443TYPE-A&B standards compliant

Support non-contact type CPU card that meet the PBOC rules, support dual-interface card and non-contact type mobile phone card

Communication protocol: T=CL

Working frequency: 13.56MHz;

Support card communication rate: 106K/212K/424K bps, and support PPS

Operation distance: 0~5cm



 SAM card interface:

ISO7816 Standards compliant and Chinese financial IC card PBOC 2.0 rules compliant.

Physical interface: GSM11.11 rules compliant

Encryption algorithm: support DES/3DES

Environment: temperature 0~40℃, humidity: 10%~90%

Support USB1.1/USB2.0 standards
