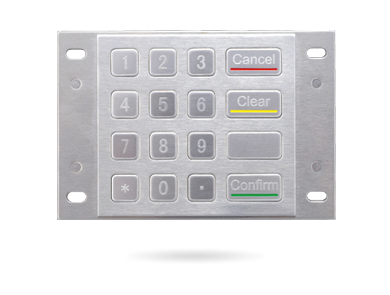

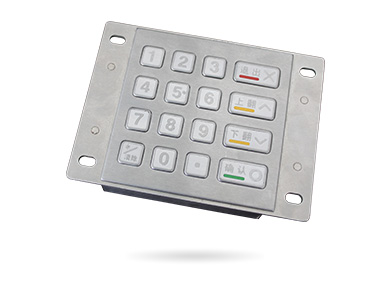

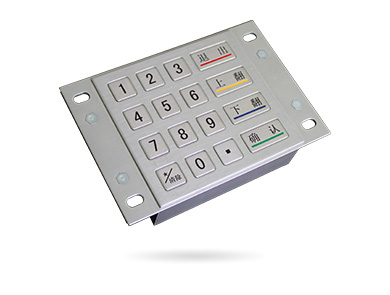

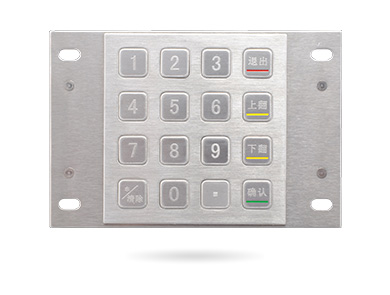

0755-29641875Financial Encryption Keypad
Keyboard specification
● Panel size: customizable size according to customers
● Metal buttons: 16 keys / 4 x 4 keyboard design (10 numeric keys, 6 function keys)
● The font can be accepted and reversed
● Keyboard text can be customized according to customer requirements
● 4 PINSAM cards (optional)
Mechanical properties
● High quality stainless steel drawing panels, key life >200 million times.
● dustproof, waterproof, anti riot, shockproof, anti drilling and anti prying.
● Press pressure and stroke: 2~3N (cattle) travel is not less than 0.4mm
● Keyboard reliability MTBF>20000h, MTTR<30min
Safety performance
● Encryption algorithm: support DES and TDES, add and decrypt algorithm, PIN encryption, MAC operation.
● To encrypt PIN within the security module of the keyboard
● Multilevel procedures and key security management functions.
● The key and program are sealed and self destructed to ensure the security of the key.
● Support national dense algorithm (SM1/SM2/SM3/SM4)
Environmental adaptability
● Protection level: IP65 static /IP54 dynamics
● Working temperature: 0 C ~ +45 C humidity: 30 ~ 90% (under normal conditions)
● Storage temperature: -25 ~ +55 C, humidity: 20 ~ 95% (no condensation and dew).
● Atmospheric pressure: 60~106 Kpa
application area
● Financial self-help equipment: such as ATM, ADM, CDM, self-service trap, self service payment machine, etc.
● Self service payment equipment: self-service ticketing machines, self service vending machines, self-service tankers, etc.
● Through CE, FCC, ROHS certification
